Earthquake Sewer System for Christchurch NZ

February 13, 2014 By admin

Vacuum Sewers prove to be the best Earthquake sewer system for Christchurch

Shirley vacuum sewer a first for the South Island.

SCIRT partner McConnell Dowell is more than halfway through a big project to build a Flovac vacuum wastewater system in the Christchurch residential suburb of Shirley – the first area of the South Island to use such technology.

Christchurch Earhquake

Christchurch Earhquake

The catchment includes about 750 houses, with 7km of vacuum main pipes in streets as well as lateral/ side connecting pipes to homes and businesses. About 6km of mains and 150 out of 195 collection chambers have been built, with a pump station and lateral pipes still in progress. It will take just over a year to complete the project, which began April 2013.

The area targeted for the Flovac vacuum system was badly affected by earthquakes with lateral spread and land-level changes. Previously, the city’s wastewater network has relied totally on a gravity system with pipelines at a gradient to support downhill flow. DSCN0090-1500After the earthquakes, the slope changed in many parts of the city, so wastewater was running in the wrong direction. The Flovac vacuum system will offer much greater resilience if there are further large earthquakes, especially in areas considered prone to liquefaction.

A further reason for using vacuum in Shirley was to keep excavation depths to a minimum because of the high ground water table and running sand. The system allowed McConnell Dowell to lay the pipes mostly at depths between one and 1.5 metres deep. This is shallow compared to the traditional gravity system which has pipes plunging to several metres deep to maintain the gravity-feedwhich takes a lot longer to access for maintenance or repair work with subsequent traffic and residential disruption.

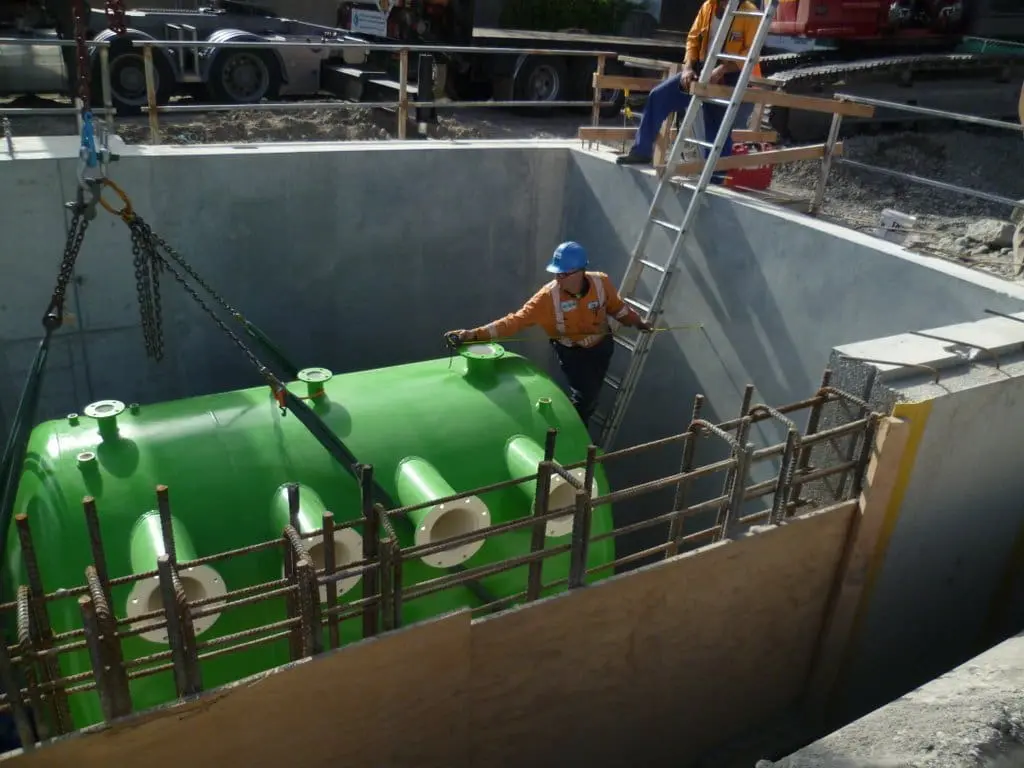

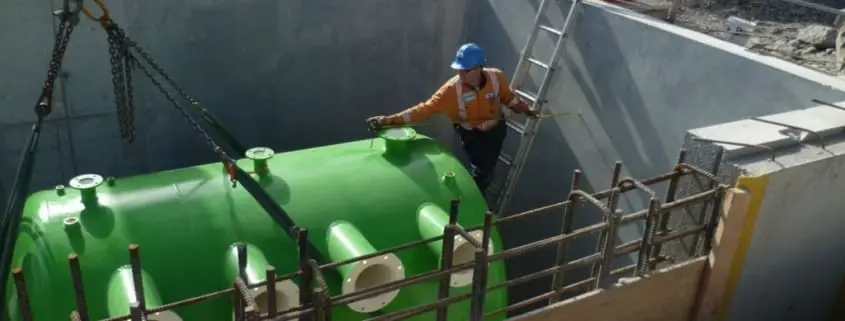

P1040577Wastewater will arrive at the Shirley catchments new pumping station, on Golf Links Road, from small collection chambers, usually located on the grass berm of a street, each serving up to four properties. The only visible parts in most streets will be collection chamber lids and man-holes at ground-level, while vent stacks will sit against property boundaries. Like in other parts of the city, wastewater from the new pumping station will go via the normal gravity system southeast to the wastewater treatment plant at Bromley.Shirley NZ Flovac Project

Residents will not notice any change
Shirley residents will not notice any difference when they flush their toilets or see their kitchen and bathroom wastewater draining to the collection chamber on the street via the gully trap/ lateral pipe. There is no additional cost to them for becoming part of this modern system.

Installing a Flovac PE Pit

Installing a Flovac PE Pit

Filed Under: Projects, Septic to Sewer Replacement Program Tagged With: Christchurch, earthquake, Gravity, New Zealand, Versatility
