Preston’s Housing Development in Christchurch

It’s a case of one down and 2599 to go at the biggest subdivision in Christchurch.

The single house under construction in the Prestons housing development in Christchurch will not be alone for long.

The milestone of Prestons’ first house was marked by a visit from Prime Minister John Key this week, five years after the giant housing development was first launched. That first house is owned by 87-year-old Cliff Mitten. Since sections in the Marshland subdivision first went on sale last year, about 330 have been sold.

Of the 200 sections in the first stage, known as Korowai, only four remain unsold. Those buyers now have titles to their sections and more construction is due to get underway soon.

In the second stage, Harakeke, 130 of the 230 sections have sold without being officially released to the market. Titles in that stage will be ready for buyers in June next year.

Prestons is the city’s biggest subdivision, designed for 2600 homes and 8000 residents. It is being developed by CDL Land NZ, Ngai Tahu and Foodstuffs South Island.

Section sizes are from 450sqm to 650sqm, and those in stage two are priced at $210,000 to $244,000.

The developers first released their plans for Prestons in 2008.

They were in the process of trying to get the farmland rezoned for housing, in the face of opposition from Environment Canterbury and other parties, when the earthquakes hit.

The decision was put on hold and then the project was given the green light in 2011 under the Canterbury Earthquake Recovery Act.

At 203 hectares, Prestons is on a site bigger than Hagley Park. It is next to the Bottle Lake Forest reserve, and the Waitikiri and Windsor Golf Courses.

The development has been designed to include a shopping area with cafes and restaurants, a New World supermarket, a primary school and parks. David Schwartfeger, development manager for Ngai Tahu Property, says the section buyers so far have come from across the board in both age and location.

He believes the geotechnical report that comes with each section is helping attract buyers.

Most of the land in the development has been classed as TC1, the least earthquake damage- prone of the government’s technical categories, while the remaining TC2 land has been brought up to TC1 level.

As part of that work, the developers did a soil swap with the Waitikiri Golf Club, removing and giving the club 70,000 cubic metres of peat in exchange for 70,000 cubic metres of sand. The subdivision was then stabilised with a 40-tonne elliptical roller which has been used overseas for mining work.

The Flovac vacuum sewerage system was chosen due to concerns about future earthquakes and due to the high water table in the area. This is Flovac’s second project in Christchurch, which is at Shirley.

Earthquake Sewer System for Christchurch NZ

Vacuum Sewers prove to be the best Earthquake sewer system for Christchurch Shirley vacuum sewer a first for the South Island.

SCIRT partner McConnell Dowell is more than halfway through a big project to build a Flovac vacuum wastewater system in the Christchurch residential suburb of Shirley – the first area of the South Island to use such technology.

The catchment includes about 750 houses, with 7km of vacuum main pipes in streets as well as lateral/ side connecting pipes to homes and businesses. About 6km of mains and 150 out of 195 collection chambers have been built, with a pump station and lateral pipes still in progress. It will take just over a year to complete the project, which began April 2013.

The area targeted for the Flovac vacuum system was badly affected by earthquakes with lateral spread and land-level changes. Previously, the city’s wastewater network has relied totally on a gravity system with pipelines at a gradient to support downhill flow.

After the earthquakes, the slope changed in many parts of the city, so wastewater was running in the wrong direction. The Flovac vacuum system will offer much greater resilience if there are further large earthquakes, especially in areas considered prone to liquefaction.

A further reason for using vacuum in Shirley was to keep excavation depths to a minimum because of the high ground water table and running sand. The system allowed McConnell Dowell to lay the pipes mostly at depths between one and 1.5 metres deep.

This is shallow compared to the traditional gravity system which has pipes plunging to several metres deep to maintain the gravity-feedwhich takes a lot longer to access for maintenance or repair work with subsequent traffic and residential disruption.

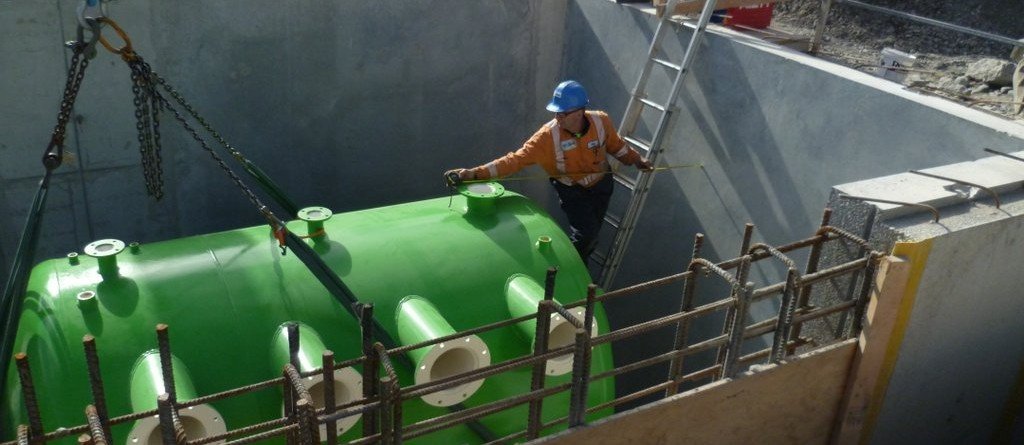

Wastewater will arrive at the Shirley catchments new pumping station, on Golf Links Road, from small collection chambers, usually located on the grass berm of a street, each serving up to four properties. The only visible parts in most streets will be collection chamber lids and man-holes at ground-level, while vent stacks will sit against property boundaries.

Like in other parts of the city, wastewater from the new pumping station will go via the normal gravity system southeast to the wastewater treatment plant at Bromley.Shirley NZ Flovac Project

Residents will not notice any change

Shirley residents will not notice any difference when they flush their toilets or see their kitchen and bathroom wastewater draining to the collection chamber on the street via the gully trap/ lateral pipe. There is no additional cost to them for becoming part of this modern system.
