Marina Port Vell Barcelona installs Flovac System

May 20, 2015 By admin

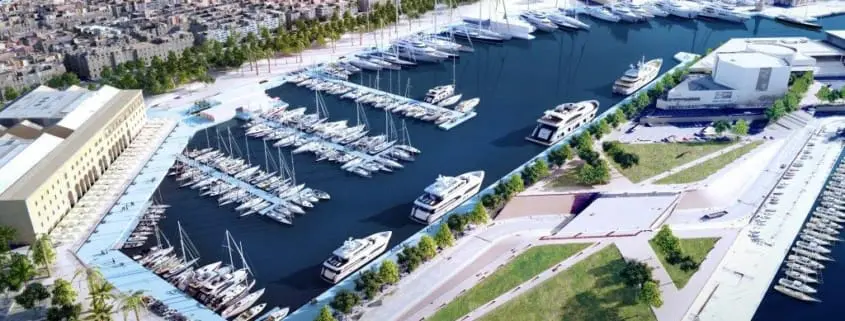

Marina-Port-Vell-in-Barcelona-On-its-way-to-become-the-most-important-destination-for-superyachts-in-the-world.



On April 27 2015, Flovac commissioned the vacuum system at the Marina Port Vell in Barcelona. Known as one of the finest new marinas for Super yachts in Europe, the owners saw the use of the Flovac system as essential.



The system designed and installed by FLOVAC includes the discharges from buildings in the Marina such as the restaurants, offices, locker rooms, gym, etc … and residences on the boats moored in the Marina.



Wastewater and Bilge Water

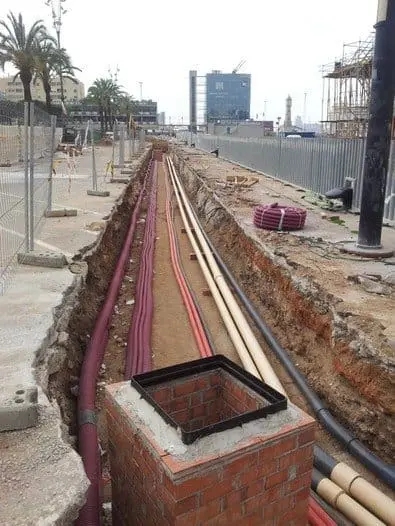

Vacuum Pipework is quickly and cheaply installed

Vacuum Pipework is quickly and cheaply installed

The vacuum system has two vacuum networks, one for wastewater generated in the Marina (waste water) and a parallel network where bilge water, which requires pre-treatment to collect the sewage discharged in port .The network of pipes, placed around

the perimeter of the marina, carrying the waste water has vacuum generated by a single vacuum station located in the Marina. It is the single point of electricity needed for the whole system. FLOVAC vacuum valves, which are located in different collection pits are pneumatically operated with this setup, FLOVAC has already installed four vacuum sewerage works in the area of the Port of Barcelona.

No Leaks from the Sewer System can occur

No sewage can pollute the water at the Marina

No sewage can pollute the water at the Marina

The vacuum system ensures the impossibility of discharges into the sea , is the most economical solution in terms of execution of work, since by its very nature design , the network of pipes need not be buried deep underground and no intermediate pumping. Moreover, in this case, the system is equipped with a remote control system that allows the owner to know exactly everything that happens anywhere in the sewer.



User Pay for Sewage Discharge

Flovac also designed software to control the discharge of sewage from yachts to the Marina and can accurately invoice by litres of discharge to the sewer. As a result, Marina Port Vell prevents sewage dumped at sea and in return gives them a MARPOL certificate.



MARPOL 73/78 is an international convention for the prevention of pollution at sea. The convention includes regulations aimed at preventing and minimising pollution at sea from ships, and this includes both, accidental pollution and pollution from routine operations.

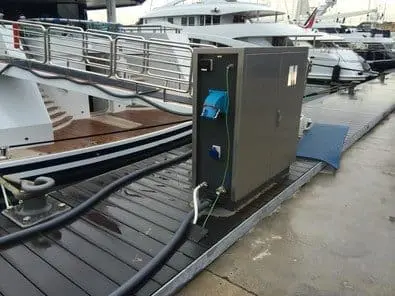

Vacuum Suction for smaller boats at the marina

Vacuum Suction for smaller boats at the marina

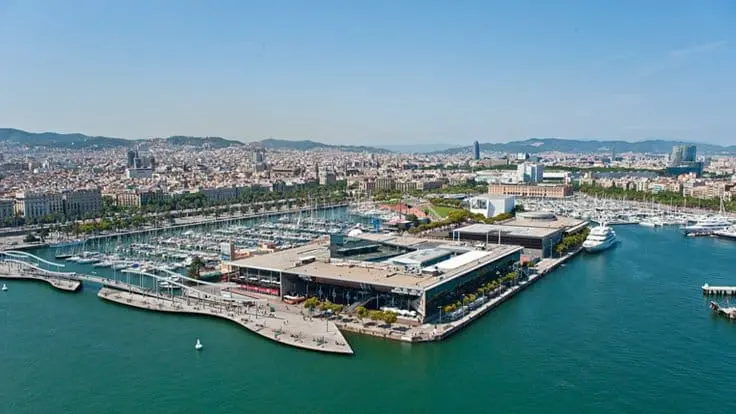

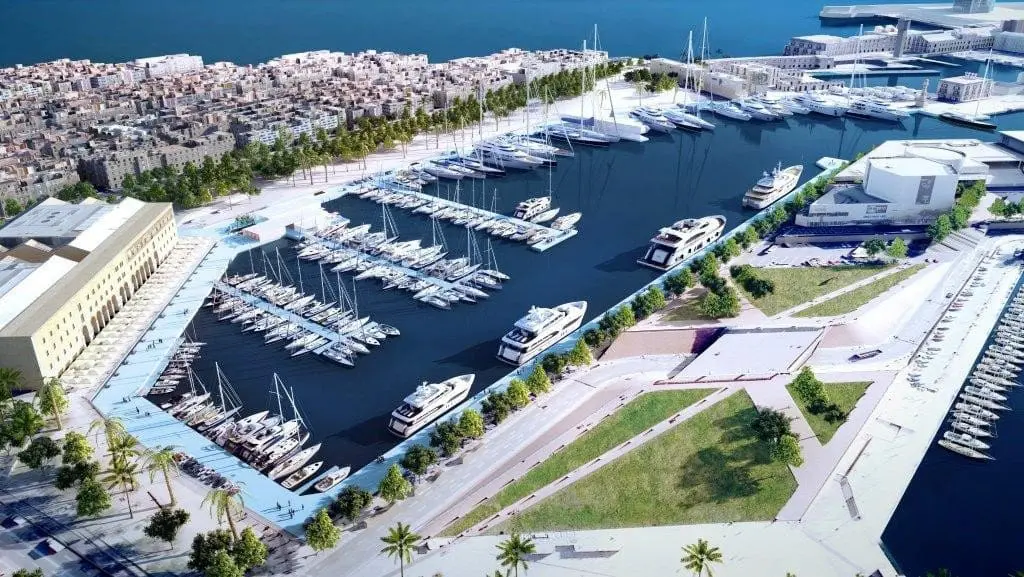

Marina Port Vell Barcelona

Marina Port Vell Barcelona

Filed Under: Marinas and Ports, Projects Tagged With: Environmentally Sensitive, exfiltration, Spain, Superyacht
